Back to Menu No.04-01-05

Create Order Group (KOH1)

Menu: Accounting > Controlling > Internal Orders > Master Data > Order Group > Create

Process Overview: Create Internal Order group. The internal order group can be used for displaying the list of the Internal Order collectively.

Screen 1:

Operation Process:

	1.	{{Order Group}}	Enter the Order Group code to be registered.
	2.		Click [Enter].

Screen 2:

Operation Process:

Enter the name (text) of the Order Group.

Screen 3:

Operation Process:

1.		Click [Insert order group on lower level].
2.	{{Order Group}}	Enter the Order Group code of the Group of the same level.
3.	{{Short Description}}	Enter the name (text) of the Group of the same level.

Screen 4:

Operation Process:

1.		Click [Insert order level on same level].
2.	{{Order Group}}	Enter the Order Group code of the Group of the same level.
3.	{{Short Description}}	Enter the name (text) of the Group of the same level.

Screen 5:

Operation Process:

When [Insert Order] is click, the range of the Order numbers of the selected Order group can be set.

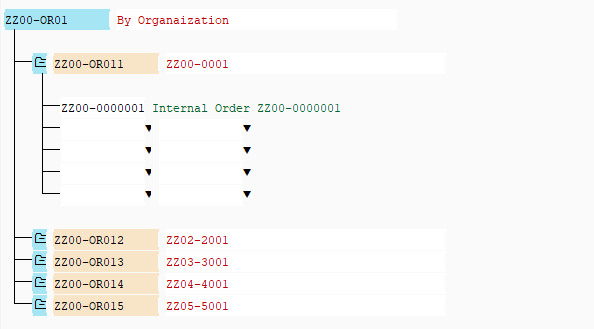

Screen 6:

Operation Process:

	1.		When [Enter] key is pressed, Internal Orders are displayed.
	2.		Click [Save].
