Orders: Actual/Quarterly Comparison (S_ALR_87013002)

Menu: Accounting > Controlling > Internal Orders > Information System > Reports for Internal Orders > Actual/Actual Comparisons > Orders: Quarterly Comparison-Actual

Process Overview: Display a list of actual data of Internal Order in quarterly comparison.

Screen 1:

Operation Process:

	Selection values
	1.	{{Controlling Area}}	Enter the target Controlling Area.
	2.	{{Fiscal Year}}	Enter the target Starting Fiscal Year.
	Selection groups
	3.	{Order Group} or	Enter the target Order Group or Order.
		{Or value(s)}
	4.	{Cost Element Group} or	Enter the target Cost Element Group or Cost Element.
		{Or value(s)}
	5.		Click [Execute].

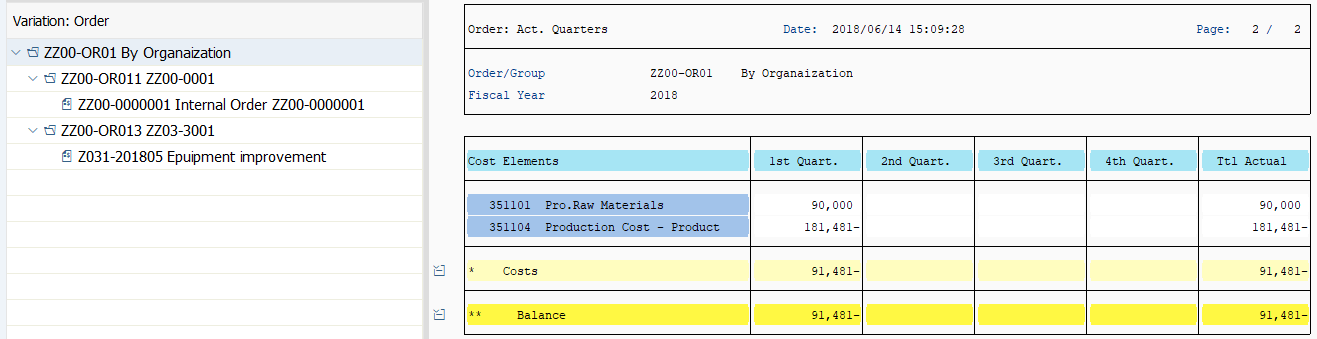

Screen 2:

Operation Process:

	1.	More > Goto > Scroll horizontal	To move column right and left. ([To the far left], [Page left], [Page Right], [To the far Right])
	2.		To display a hierarchy of the order group. [Navigation On/Off]
	3.	More > Goto > Variation	To change hierarchy level. ([Variation Previous level], [Variation left], [Variation right], [Variation next level])
	4.	More > View > Expand section, Collapse section	To expand section or collapse.
	5.	More > Setting > Column attributes	To change column width. (After putting a cursor on any column, select the menu pass.)
	6.		To display the other report. ([Call up report]) (After selecting a specifying amount column, click the button.)
	7.		To replace the list by Excel Sheet. ([Options / Office Integration])

Remarks:
